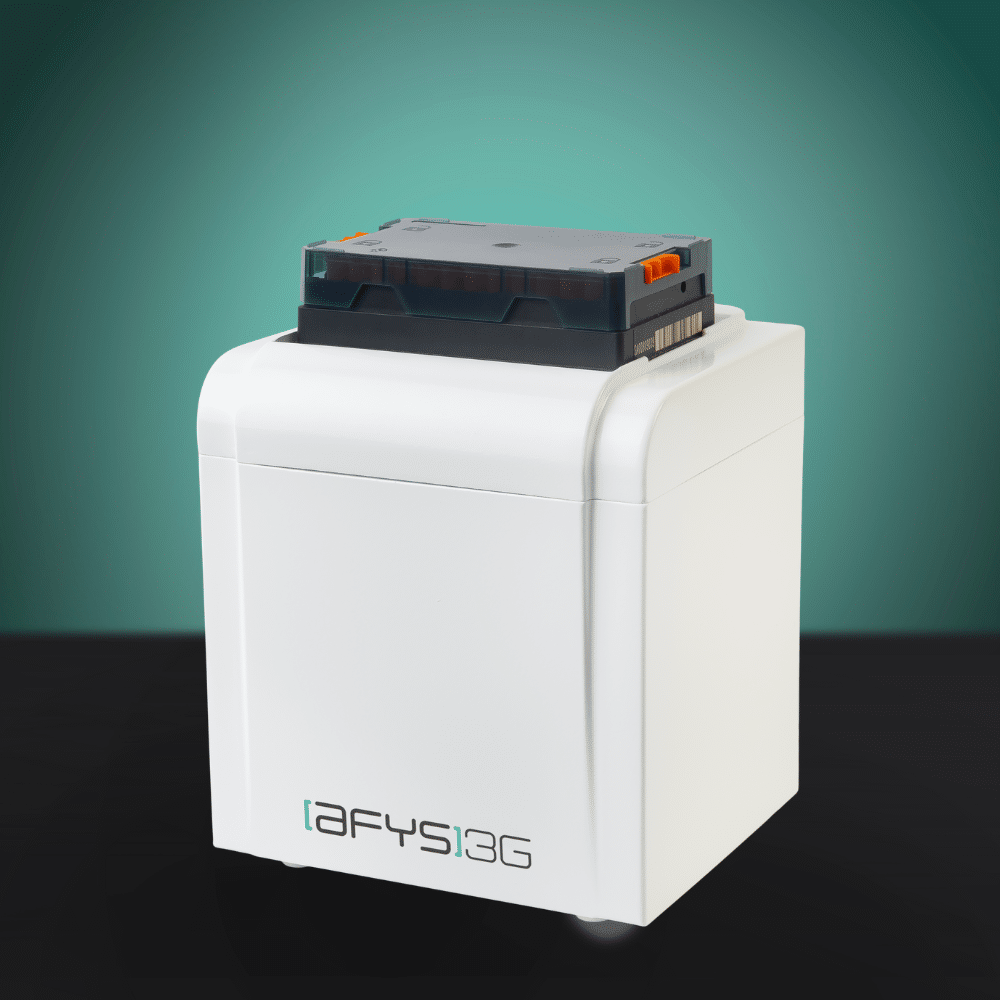

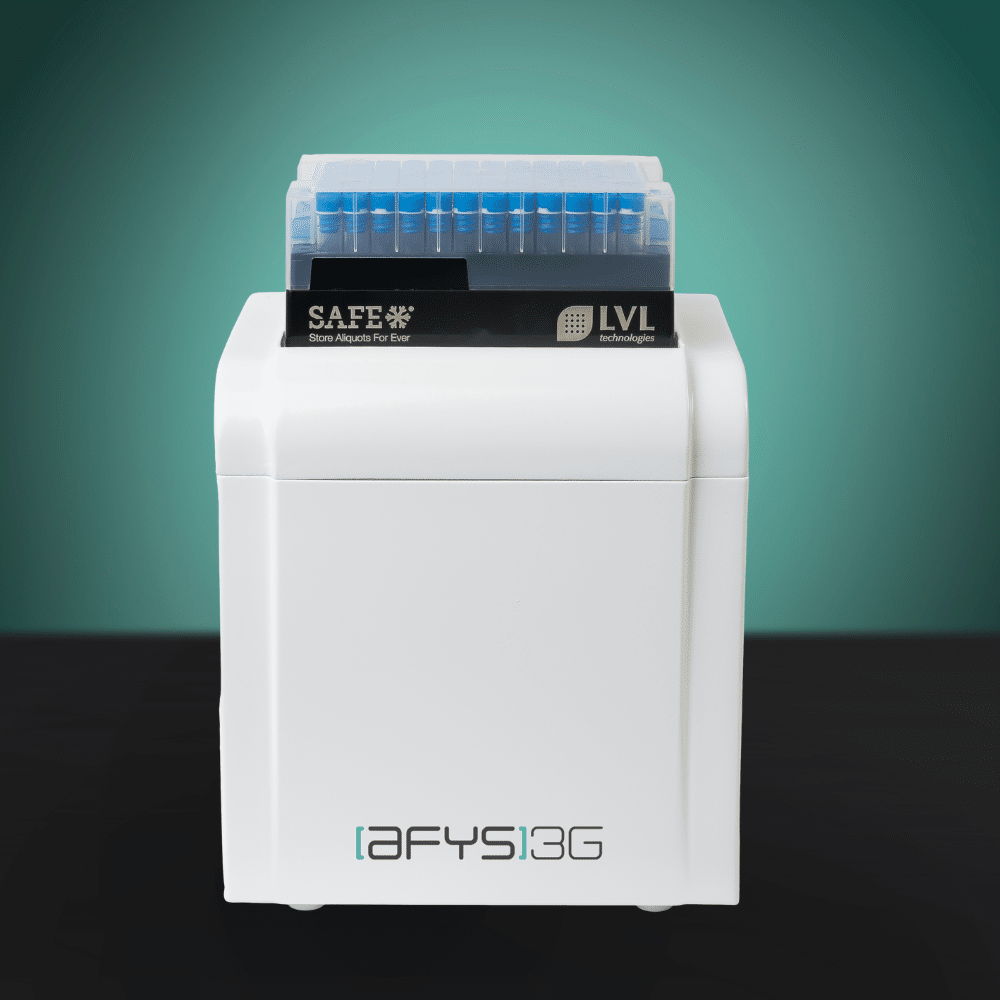

High Speed Rack Reader Delta50

The AFYS3G High Speed Rack Reader Delta50 is a one-of-a-kind camera-based rack reader that can decode 1D rack barcodes* and 2D Data-Matrix tube codes. The whole rack reader is compatible with most common tube brands available on the market.

高速樣品管架讀取器Delta50

AFYS3G高速樣品管架讀取器Delta50是一款獨一無二的基于攝像頭的樣品管架讀取器，可以解碼1D樣品管架條形碼*和2D數據矩陣管代碼。整個樣品管架閱讀器與市場上最常見的樣品管品牌兼容。

The Delta50 offers multiple benefits

Delta50提供了多種好處

Fast operation

Reads and decodes 2D tubes from a 24-, 48- or 96-well format rack in less than 3 seconds.

快速操作

讀取和解碼2D管從24,48或96孔格式管架在不到3秒。

Wide compatibility

Compatible with ANSI/SLAS format racks of most common brands on the market.

廣泛的兼容性

與市場上大多數常見品牌的ANSI/SLAS格式機架兼容。

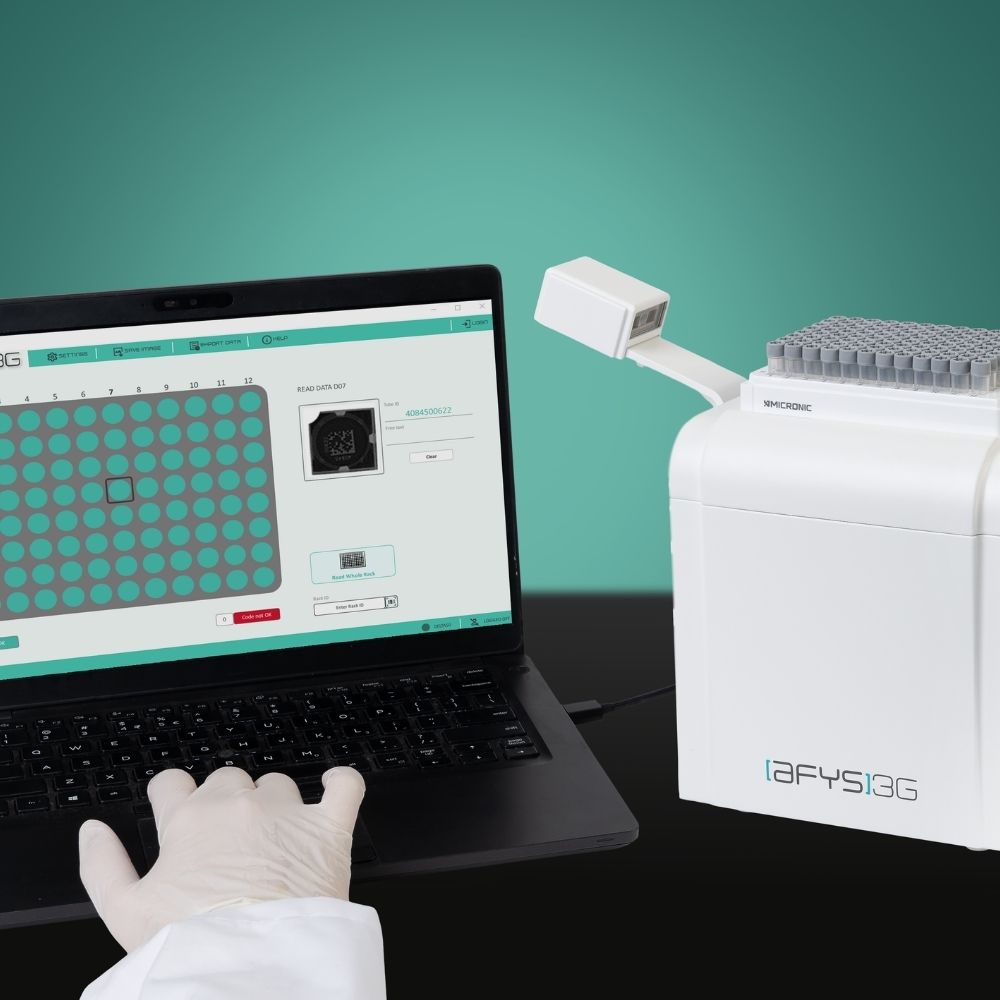

Delta Decoding Software

Comes standard with in-house built and easy to use decoding software.

Delta解碼軟件

標準配備內部構建和易于使用的解碼軟件。

Convenient installation

Easy PC or laptop plugin with USB-cable.

安裝方便

簡單的PC或筆記本電腦插件與usb電纜。

Various data export options

Easy to export decoded data to XML, CSV and TXT files with the AFYS3G Delta Decoding Software.

各種數據導出選項

易于導出解碼數據到XML, CSV和TXT文件與AFYS3G三角洲解碼軟件。

Camera-based reader

Camera-based for fast reading and results in just one click.

基于攝像頭的讀取器

基于相機的快速閱讀和結果，只需點擊一下。

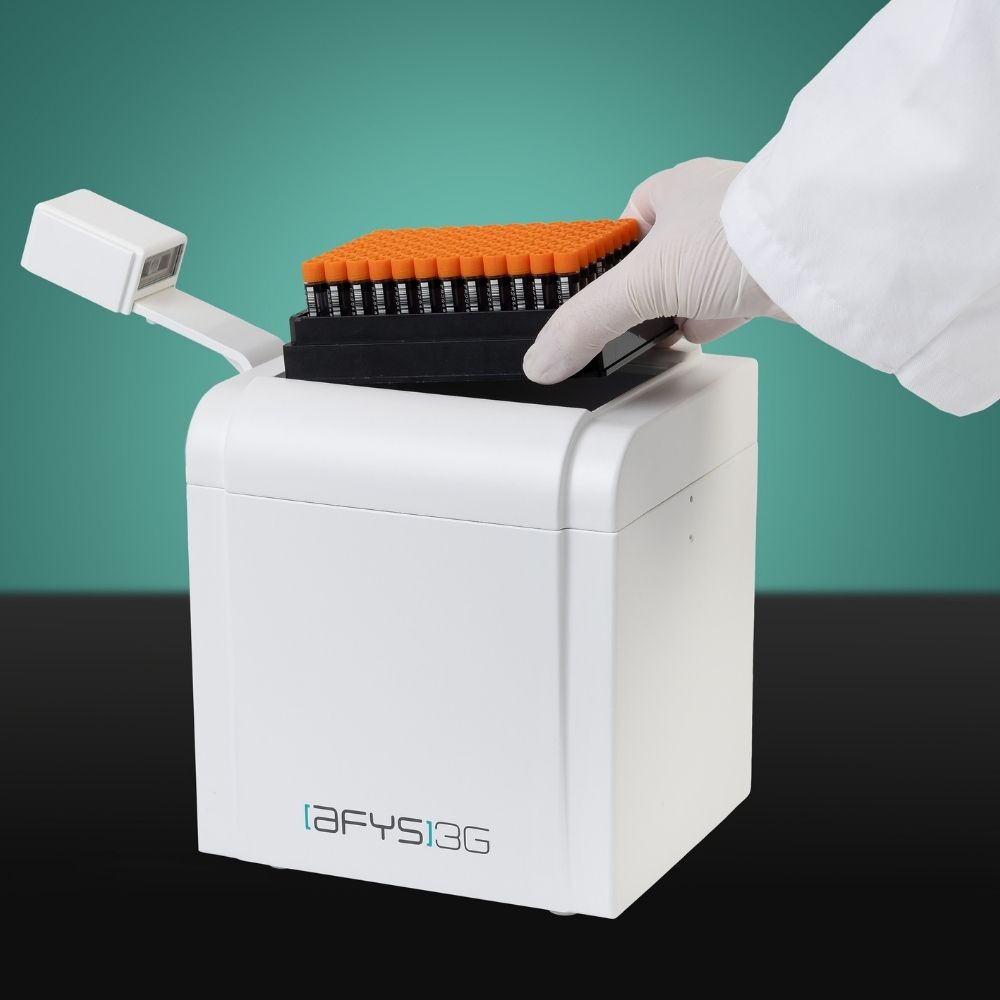

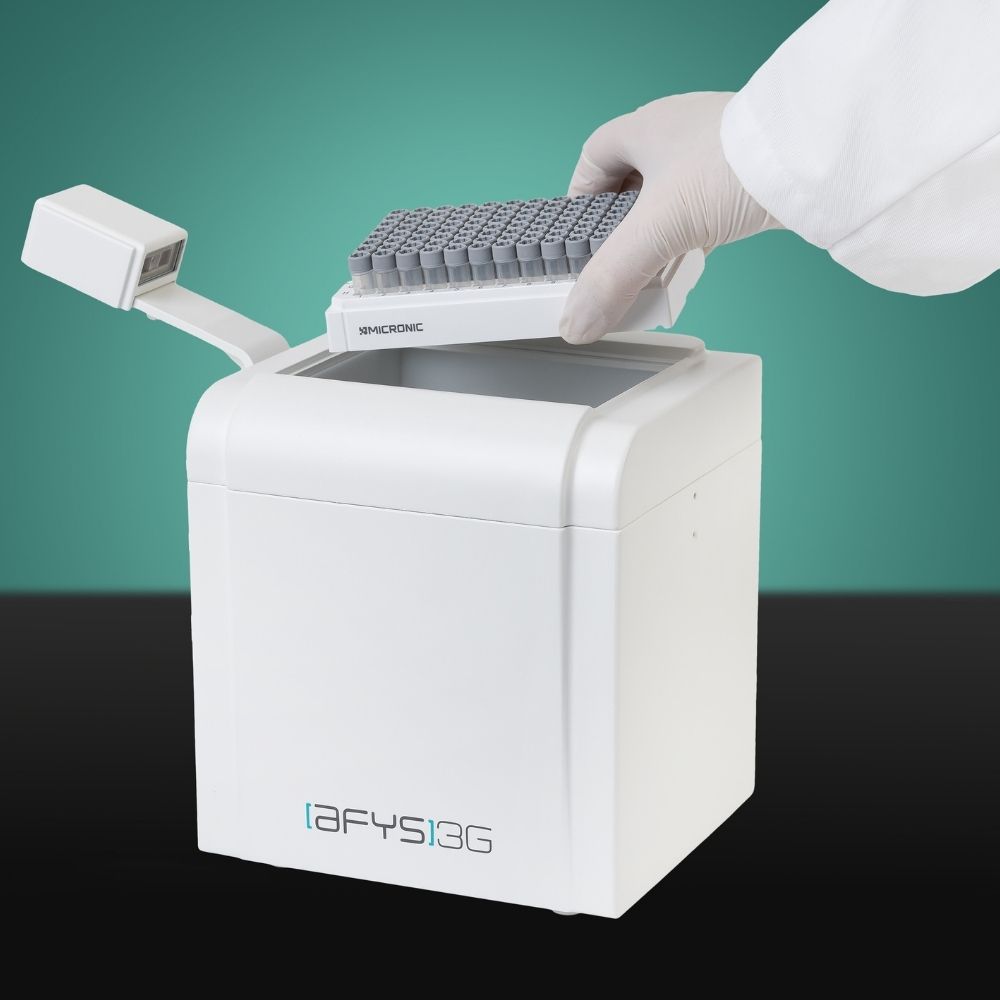

Track and trace samples instantly

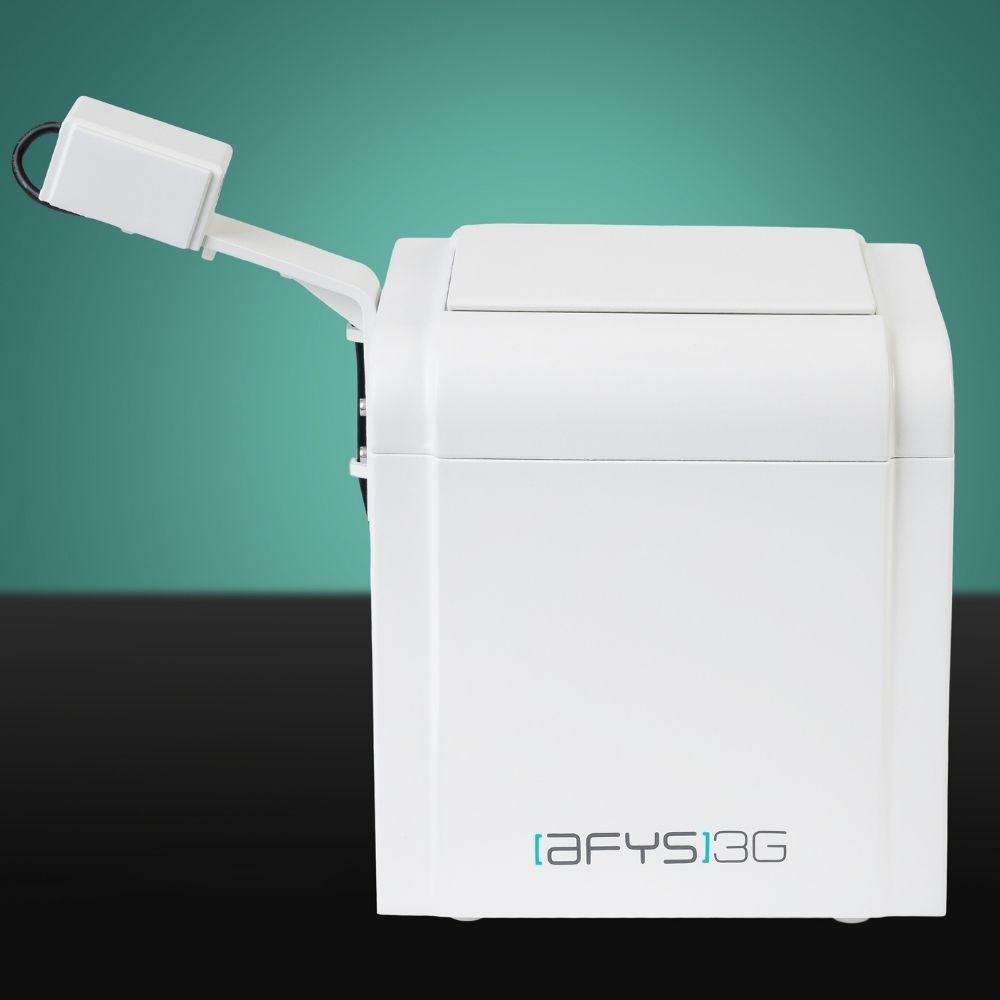

The AFYS3G Delta50 reads and decodes 2D Data-Matrix coded tubes in a 24-, 48- or 96-well format rack in less than 3 seconds. Scan 1D rack barcodes simultaneously with the optional side barcode reader. The easy to use software enables scanned data to be easily be exported to XML, CSV and TXT files.

即時跟蹤和跟蹤樣品

AFYS3G Delta50在不到3秒的時間內讀取和解碼24、48或96孔格式的2D Data-Matrix編碼管。與可選的側條形碼閱讀器同時掃描1D機架條形碼。易于使用的軟件使掃描的數據可以很容易地導出為XML, CSV和TXT文件。

Technical details

Power: 5VDC 0.9A

Dimensions: 170 x 150 x 194 mm

Weight: 1.8kg

Operating temprature: +5°C / +40°C

Compatibility ANSI/SLAS racks from most common brands

Reading speed: < 3 seconds

技術細節

電源:5vdc 0.9A

尺寸:170 x 150 x 194毫米

重量:1.8kg

工作溫度:+5℃/ +40℃

兼容性大多數常見品牌的ANSI /SLAS機架

閱讀速度:< 3秒
