Teleshake AC

高質量的震動，有廣泛的一次性選擇

震動負荷高達500克，高達3000轉/分與我們的自動夾緊解決方案。

微孔板搖床用于混合樣品，用于免疫分析，ELISA，細胞培養和其他需要高通量篩選的實驗室應用。 當混合小體積樣品時，震動比攪拌更可取，因為不需要額外的攪拌棒，所以沒有額外的污染風險。 作為自動液體處理甲板的一部分，緊湊的振動器可以節省時間和空間。 它增加了精度，提供統一的和可復制的震動使用您選擇的速度和模式所需的時間周期。

Teleshake AC可以讓你震蕩各種各樣的板。 由于自動夾緊，它可以處理負載高達500g的線性，軌道和對角搖晃。 主動夾緊(自動夾緊實驗器具)，采用針對不同實驗器具定制的夾緊桿，讓您無需調整即可使用不同規格的板。 這也使您可以搖板與夾緊的蓋子，并允許穿透密封箔，同時保持板牢牢夾緊。 震動頻率為200至3000轉，振幅可調2毫米。 易于調整的振動模式(線性，軌道和平面)和低速啟動過程，防止泄漏。

模型來滿足您的需求

INHECO提供三種型號的甲板上振動器。

Teleshake AC -用于多種板尺寸和負載不超過500g的場合。 AC系列設備提供了一個自動夾緊機構(AC)和多個震動選項

Teleshake-專為小板尺寸設計

Teleshake 1536 -當需要更高的振動頻率時，適用于小板

易于集成

Teleshake AC在甲板上只占用一個ANSI/SLAS板位置，比標準微孔板占用的空間更小，只有47毫米高，具有零定位功能，使機器人抓取舒適。 使用獨立的甲板外INHECO Single TEC控制單元(STC)進行控制，進一步最小化甲板空間，同時降低噪音和溫度。 或選擇INHECO Multi TEC Control單元，當在您的甲板上使用幾種INHECO產品時，可并行控制多達6個設備。 現有API, Teleshake AC與所有主要的甲板制造商集成，實現即時即插即用。

可靠的和支持

每一個INHECO設備都是在德國設計、工程和制造，并在交付前經過嚴格的質量控制。 它具有全球兩年的保修和全面的客戶服務，包括遠程支持，診斷和服務選項，專注于最大限度地減少操作停機時間。

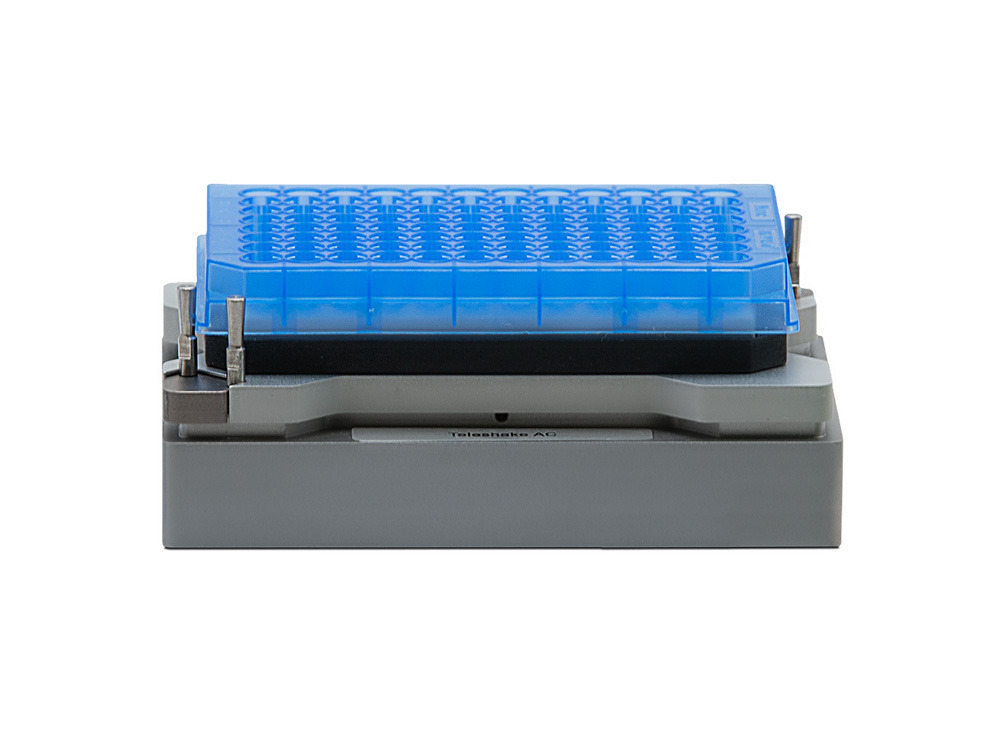

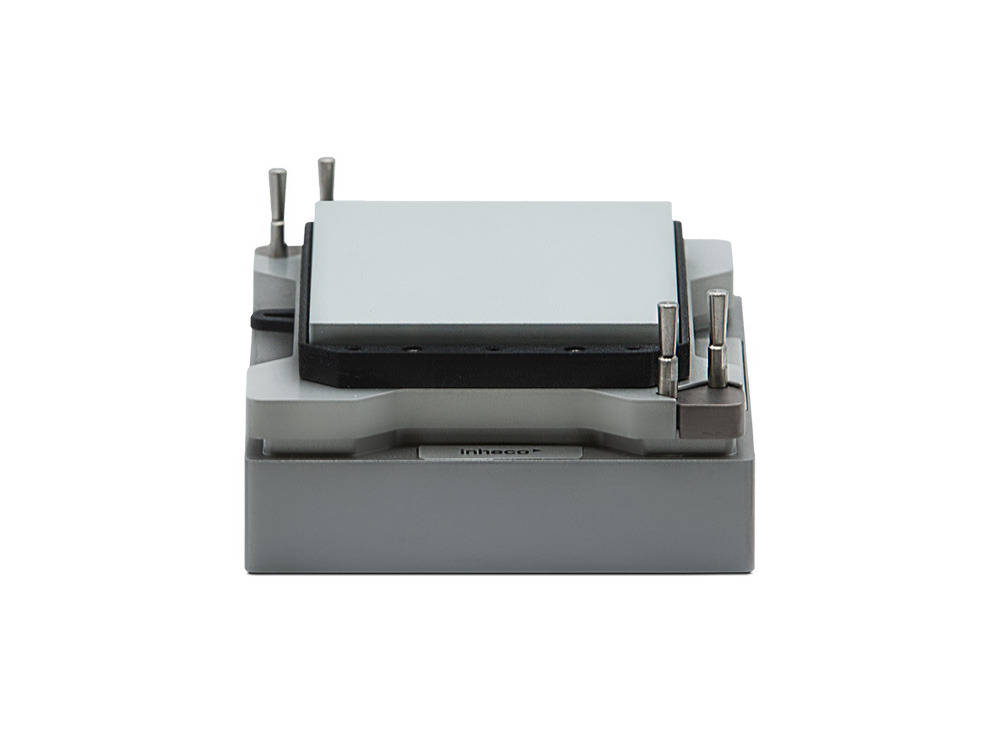

Teleshake AC

High mass shaking for a wide choice of disposables

Shake loads of up to 500 g at up to 3000 rpm with our auto clamping solution.

Microplate shakers are used for mixing samples used in immunoassays, ELISA, cell cultures, and other lab applications that require high throughput screening. Shaking is preferred to stirring when mixing low volume samples because no additional stirring rod is required, so there’s no extra risk of contamination. As part of an automated liquid handling deck a compact shaker can save time and space. It adds precision by providing uniform and replicable shaking using your chosen speed and pattern for the time period required.

The Teleshake AC allows you to shake a wide variety of plates. Thanks to automated clamping it can handle loads up to 500 g for linear, orbital and diagonal shaking. Active clamping (automated labware clamping), using customized clamping rods for different labware, lets you use different format plates without adjustment. That also enables you to shake plates with clamped lids and allows piercing through sealing foils while keeping the plate firmly clamped. Shaking frequency is 200 to 3000 rpm with adjustable amplitude of 2 mm. It’s easy to adjust the shaking pattern (linear, orbital & planar) and a low-speed start-up process prevents spillage.

MODELS TO MATCH YOUR NEEDS

INHECO offers three models of on-deck shaker.

Teleshake AC - For multiple plate sizes and where loads of up to 500 g are required. The AC range of device deliver an auto clamping mechanism (AC) and multiple shaking options

Teleshake - Designed for smaller plate sizes

Teleshake 1536 - For small plates when a higher shaking frequency is required

EASY TO INTEGRATE

The Teleshake AC takes up just one ANSI/SLAS plate position on deck, occupying little more space than a standard microplate, and is just 47 mm high with a zero positioning function for comfortable robotic gripping. Control with the separate off-deck INHECO Single TEC Control unit (STC) which further minimizes deck space while reducing noise and temperature. Or choose the INHECO Multi TEC Control unit to control up to six devices in parallel when using several INHECO products on your deck. An API is available and the Teleshake AC is integrated with all major deck manufacturers, enabling immediate plug and play.

RELIABLE AND SUPPORTED

Every INHECO device is designed, engineered and made in Germany and undergoes rigorous quality control before delivery. It comes with a global two-year warranty and full customer service including remote support, diagnostic and servicing options that focusses on minimizing operational downtime.
