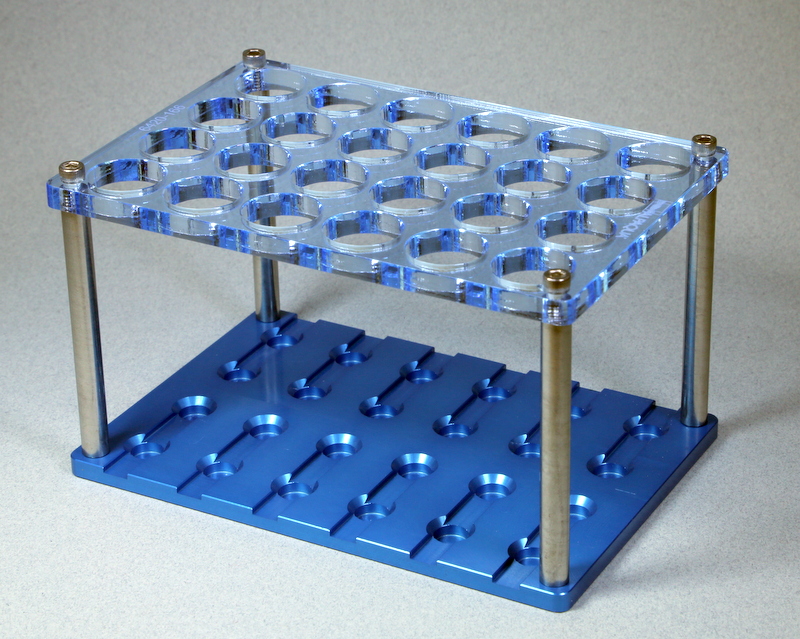

24 Position SBS Tube Rack24位管架

24 Position Tube Rack24位管架 SKU: A000280

24 position SBS-compatible tube rack. Can be customized for tube diameter and height

24位sbs兼容管架。管徑和高度可以定做

SBS-compliant tube rack for use on liquid handlers to accommodate a range of tube types.  The standard diameter is 16.6mm for a variety of tubes such as 15ml centrifuge tubes (VWR, Axygen, BD, Corning, etc.), 12ml KIMAX Culture tubes, Oragene OG-500 tubes and Tyco Monoject Tubes. Custom sizes available from ca. 12 – 17 mm.

符合sbs標準的管架用于液體處理，以適應(yīng)各種管類型。標準直徑為16.6mm，適用于各種管，如15ml離心管(VWR，氧氣，BD，康寧等)，12ml KIMAX培養(yǎng)管，Oragene OG-500管和Tyco Monoject管。自定義尺寸可從約12 - 17毫米。

24 Position SBS Tube Rack

SBS footprint, compatible with standard liquid handler decks

Holds up to 24 tubes

Compatible with a range of tube types from 12 – 17 mm. Specify when ordering.

24定位SBS管架

SBS占地面積，與標準液體處理機甲板兼容

最多可容納24根管子

兼容范圍管類型從12 - 17毫米。在訂購時指定。

This tube rack is similar to our 15 ml tube rack, P/N A000260. However, the difference between them is that this rack has a closed bottom. 15 ml centrifuge tubes sit 0.5 mm above the deck.

這個管架類似于我們的15毫升管架，P/N A000260。然而，它們之間的區(qū)別是，這個機架有一個封閉的底部。15毫升離心管位于甲板上方0.5毫米處。

We can build the rack for tube diameters ranging from 12 – 17 mm. Ideally, we like to have a sample tube to ensure a perfect fit, but you can also specify the diameter. Measure the tube diameter at 65 mm from the bottom.

我們可以為管徑從12 - 17毫米的管道建造機架。理想情況下，我們希望有一個樣管，以確保完美配合，但你也可以指定直徑。測量管徑在65毫米從底部。
