Teleshake 1536

小型綜合振動篩，用于384-1536孔板的高頻混合

小體積樣品的高頻振蕩。

微孔板搖床用于混合樣品，用于免疫分析，ELISA，細胞培養和其他需要高通量的實驗室應用。 當混合小體積樣品時，搖動比攪拌更可取，因為不需要額外的攪拌棒，所以沒有額外的污染風險。 作為自動液體處理甲板的一部分，緊湊的振動篩可以節省時間和空間。 它增加了精度，提供統一的和可復制的震動使用您選擇的速度和模式所需的時間周期。

該Teleshake 1536是理想的小體積板從384到1536井，需要更高的震動頻率。 該Teleshake 1536可以提供震動頻率從4000到8500 rpm，振幅可調0.1-1毫米。 易于調整振動模式(線性和軌道)和低速啟動過程，防止泄漏。 在搖晃過程中，通過一種容易適應不同板的機構，板被牢固固定。

模型來滿足您的需求

INHECO提供三種型號的甲板上振動篩。

Teleshake AC -用于多種板尺寸和負載不超過500g的場合。 AC系列設備提供了一個自動夾緊機構(AC)和多個震動選項

Teleshake-專為小板尺寸設計

Teleshake 1536 -當需要更高的振動頻率時，適用于小板

易于集成

Teleshake 1536在甲板上只占用一個ANSI/SLAS板位置，比標準微孔板占用的空間更小，只有56毫米高，具有零定位功能，使機器人抓取舒適。 獨立的甲板外控制器進一步最小化甲板空間，同時降低噪音和溫度。 使用控制模塊或PC機通過RS232接口和菊花鏈多達14個設備。 或選擇INHECO Multi TEC Control單元，當在您的甲板上使用幾種INHECO產品時，可并行控制多達6個設備。 目前已提供API, Teleshake 1536已與所有主要的甲板制造商集成，實現了即插即用。

可靠的和支持

INHECO提供的每一個設備都是按照INHECO標準設計、設計和制造的，并在交付前經過嚴格的質量控制。 它具有全球兩年的保修和全面的客戶服務，包括遠程支持，診斷和服務選項，專注于最大限度地減少操作停機時間。

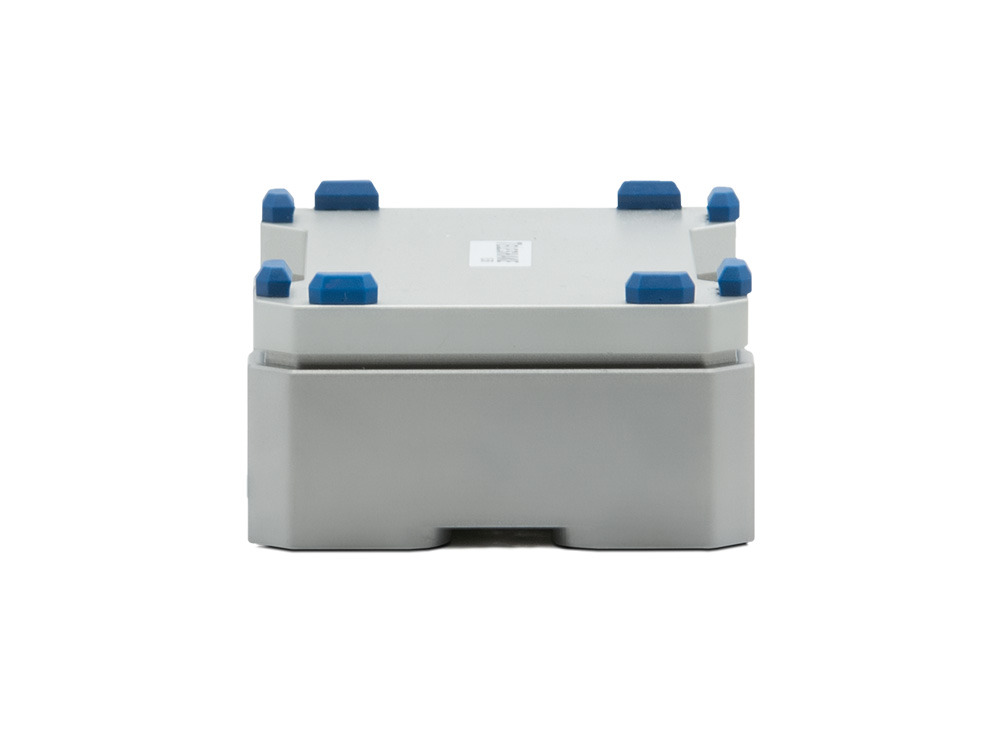

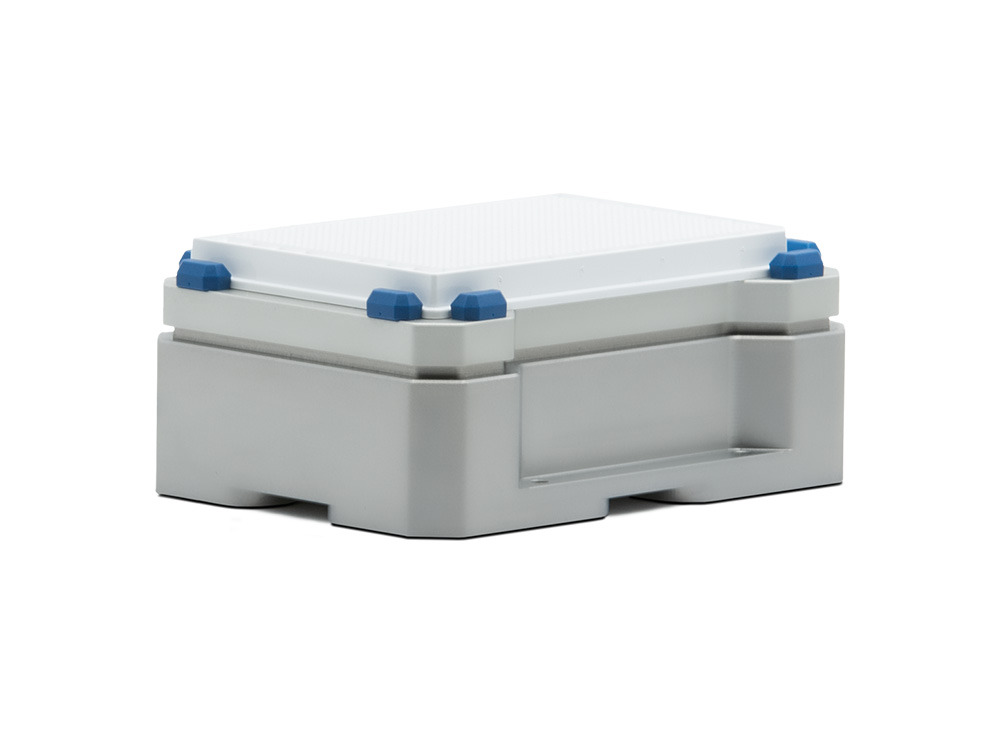

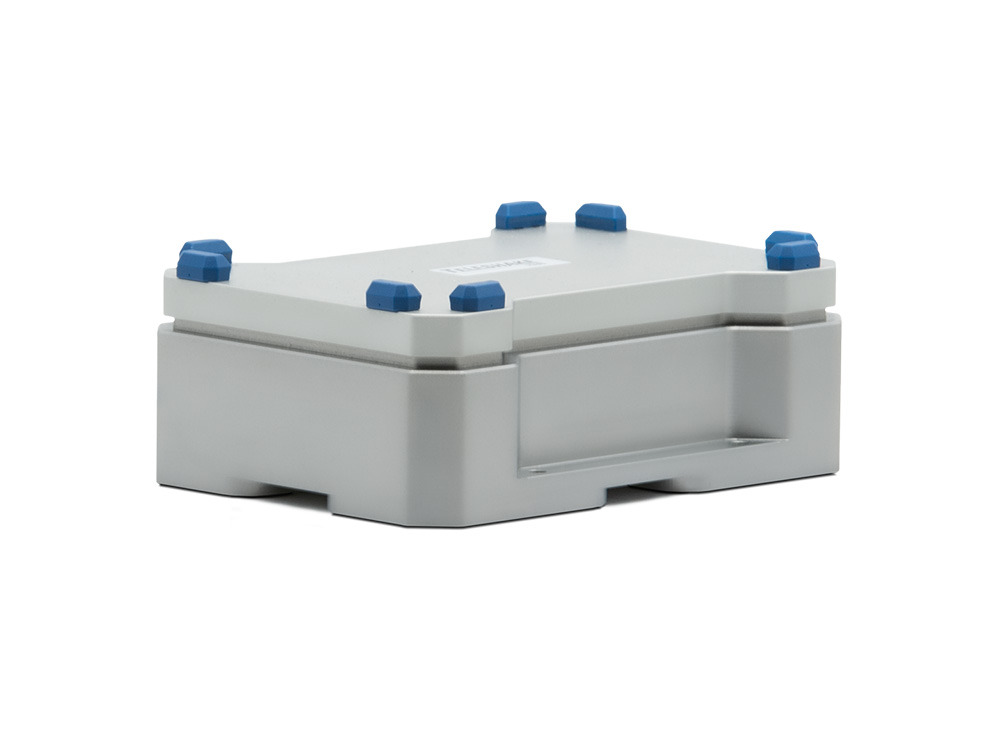

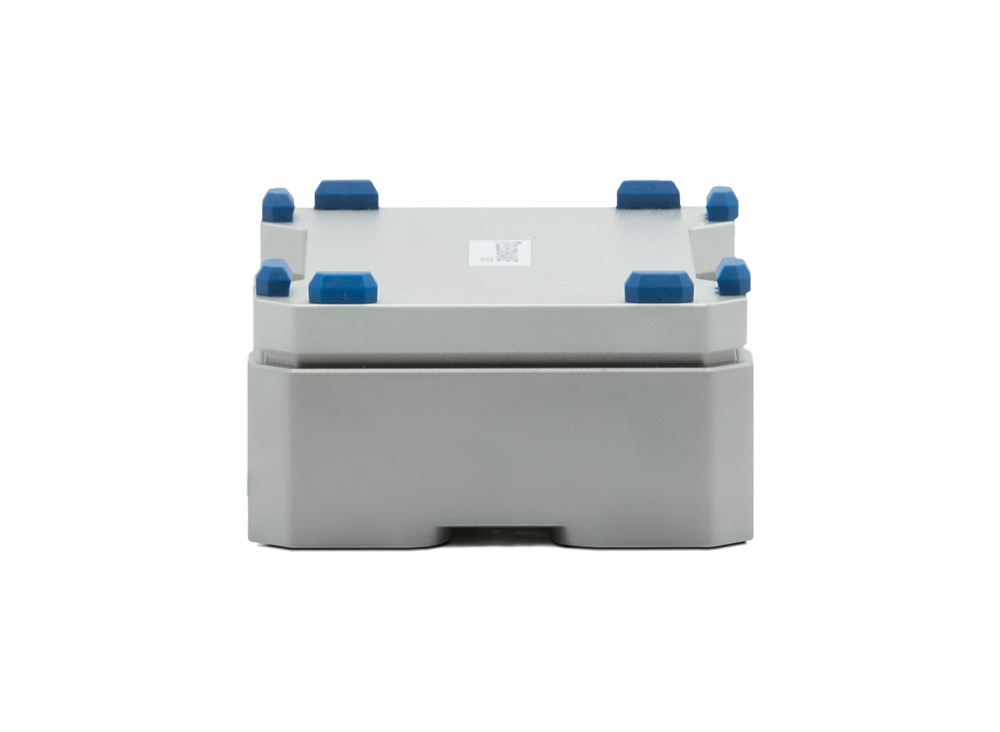

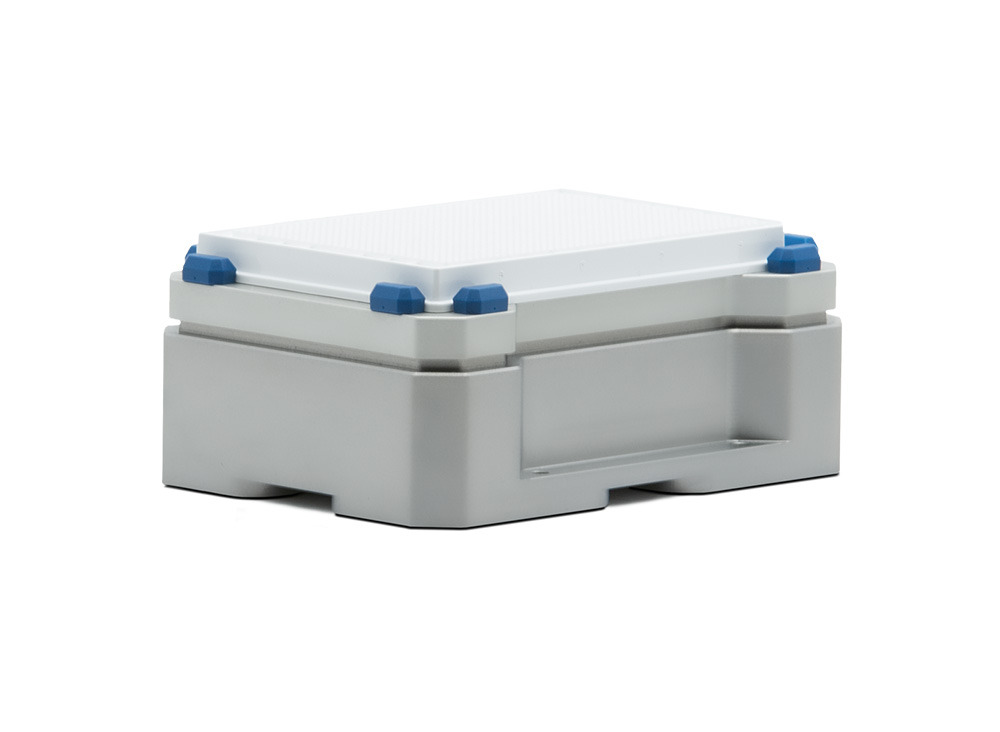

Teleshake 1536

Small integrated shaker for high frequency mixing of 384-1536 well plates

High frequency shaking of small volume samples.

Microplate shakers are used for mixing samples used in immunoassays, ELISA, cell cultures, and other lab applications that require high throughput. Shaking is preferred to stirring when mixing low volume samples because no additional stirring rod is required, so there’s no extra risk of contamination. As part of an automated liquid handling deck a compact shaker can save time and space. It adds precision by providing uniform and replicable shaking using your chosen speed and pattern for the time period required.

The Teleshake 1536 is ideal for small volumes in plates from 384 to 1536 wells that need higher shaking frequencies. The Teleshake 1536 can deliver Shaking frequencies from 4000 to 8500 rpm with an adjustable amplitude of 0.1-1 mm. It’s easy to adjust shaking pattern (linear & orbital) and a low-speed start-up process prevents spillage. Plates are securely fixed during shaking with a mechanism that is easily adaptable for different plates.

MODELS TO MATCH YOUR NEEDS

INHECO offers three models of on-deck shaker.

Teleshake AC - For multiple plate sizes and where loads of up to 500 g are required. The AC range of device deliver an auto clamping mechanism (AC) and multiple shaking options

Teleshake - Designed for smaller plate sizes

Teleshake 1536 - For small plates when a higher shaking frequency is required

EASY TO INTEGRATE

The Teleshake 1536 takes up just one ANSI/SLAS plate position on deck, occupying little more space than a standard microplate, and is just 56 mm high with a zero positioning function for comfortable robotic gripping. The separate off-deck controller further minimizes deck space while reducing noise and temperature. Use a control module or PC via RS232 interface and daisy chain up to 14 devices. Or choose the INHECO Multi TEC Control unit to control up to six devices in parallel when using several INHECO products on your deck. An API is available and the Teleshake 1536 is integrated with all major deck manufacturers, enabling immediate plug and play.

RELIABLE AND SUPPORTED

Every INHECO-supplied device is designed, engineered and made to INHECO standards and undergoes rigorous quality control before delivery. It comes with a global two-year warranty  and full customer service including remote support, diagnostic and servicing options that focusses on minimizing operational downtime.
