冷板風冷加熱器/冷卻器

快速，精確，穩定的加熱和冷卻您的工作站

一個高度緊湊的完全集成的解決方案，使您能夠精確地控制您的反應，并迅速達到所需的溫度。

Peltier模塊為控制生物和化學樣品的反應提供了一個高效的解決方案。 它們使節能、快速和精確的溫度變化成為可能。 當您需要快速、精確、穩定的溫度曲線時，它是理想的技術。 INHECO設計和提供基于Peltier的解決方案已有20多年的歷史，并擁有一系列滿足客戶需求的設備。

選擇四個版本的INHECO CPAC(冷板風冷)加熱器/冷卻器，以配合您的液體處理工作站和應用需要。

小或更小

我們的CPAC Ultraflat在甲板上只占據一個ANSI/SLAS板位置。 它的外形只有80毫米，非常緊湊。 我們的CPAC微孔板同樣占地面積小，安裝在甲板下的通風設備的剖面僅為14毫米，提供了卓越的低剖面性能和甲板外空氣運動。

恒溫或改變溫度

我們的CPAC設備有兩個版本:

標準版本有一個Peltier模塊，并優化，以保持您的樣品在恒定溫度高達70°C。 溫度范圍4°C ~ 70°C，均勻度0.5 K，精度0.3 K。

HT 2-TEC版本有兩個Peltier模塊，用于在工作流程的不同孵化階段需要溫度交替和溫度快速變化時使用。 溫度范圍4℃~ 110℃，均勻度0.5 K，精度0.3 K。

靈活的使用

輕松的抓手訪問，讓您舒適地使用您的選擇抓手。 您可以使用您喜歡的一次性CPAC，包括小瓶和儲液器-我們提供超過200個適配器，內部制造，以確保完美適合一次性物品的幾何形狀，或可以定制適配器，以滿足您的需求。

易于集成

使用獨立的甲板外INHECO Single TEC控制單元(STC)控制CPAC，進一步最小化甲板空間，同時降低噪音和溫度。 或選擇INHECO Multi TEC Control單元，當在您的甲板上使用幾種INHECO產品時，可并行控制多達6個設備。 對于軟件集成，API可用，CPAC模型與所有主要甲板制造商集成。

可靠的和支持

每一個INHECO設備都是在德國設計、設計和制造，并在交付前經過嚴格的質量控制。 它具有全球兩年的保修和全面的客戶服務，包括遠程支持，診斷和服務選項，專注于最大限度地減少操作停機時間。

CPAC – Cold Plate Air Cooled Heater/Cooler

Fast, precise, stable heating and cooling for your workstation

A highly compact fully integrated solution enabling you to control your reaction precisely and reach desired temperatures quickly.

Peltier Modules deliver a highly effective solution for controlling the reaction of biological and chemical samples. They enable energy-efficient, rapid and precise temperature changes. It’s the ideal technology when you need fast, precise and stable temperature curves. INHECO have been designing and providing Peltier based solutions for more than 20 years and have a range of devices that address the needs of our customers.

Choose from four versions of the INHECO CPAC (cold plate air cooled) heater/coolers to work with your liquid handling workstation and application needs.

SMALL OR SMALLER

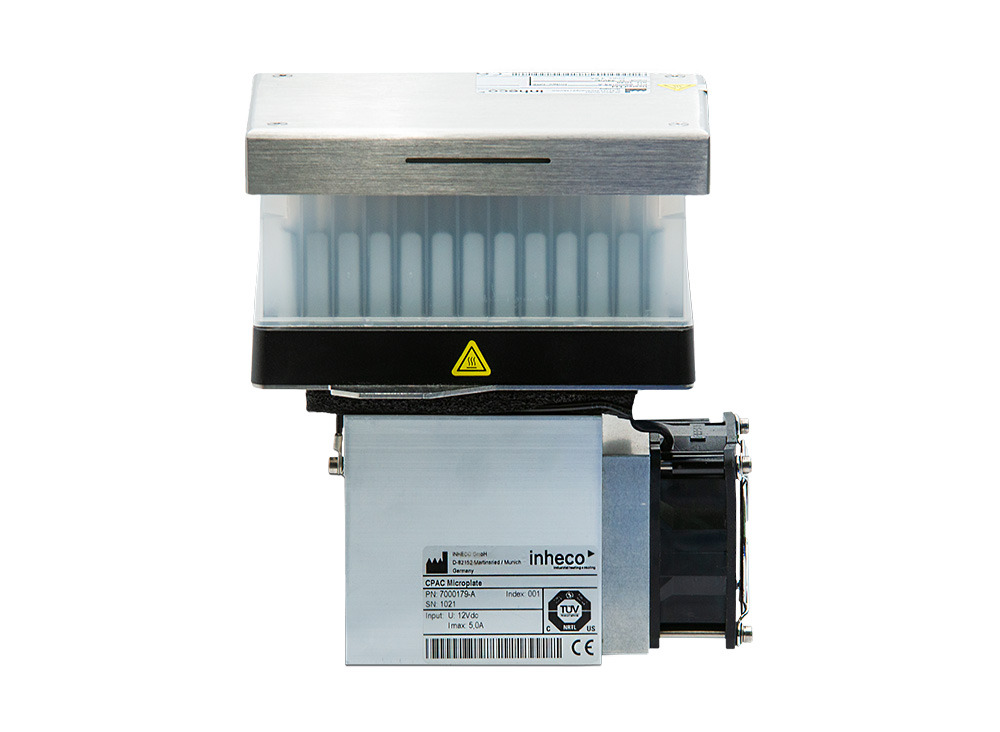

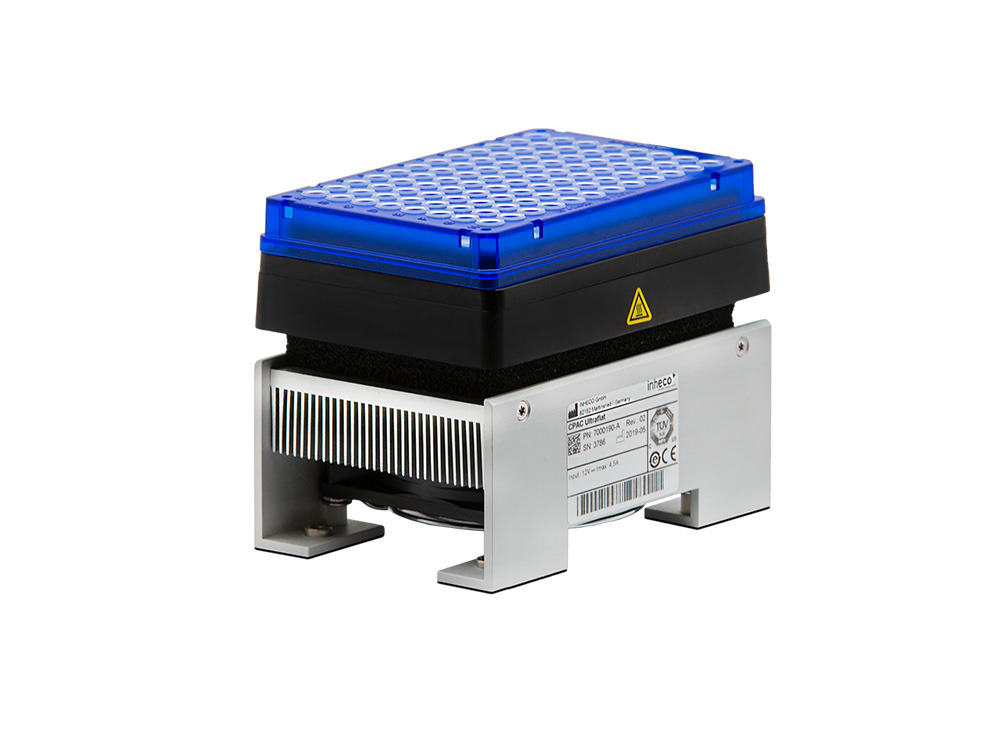

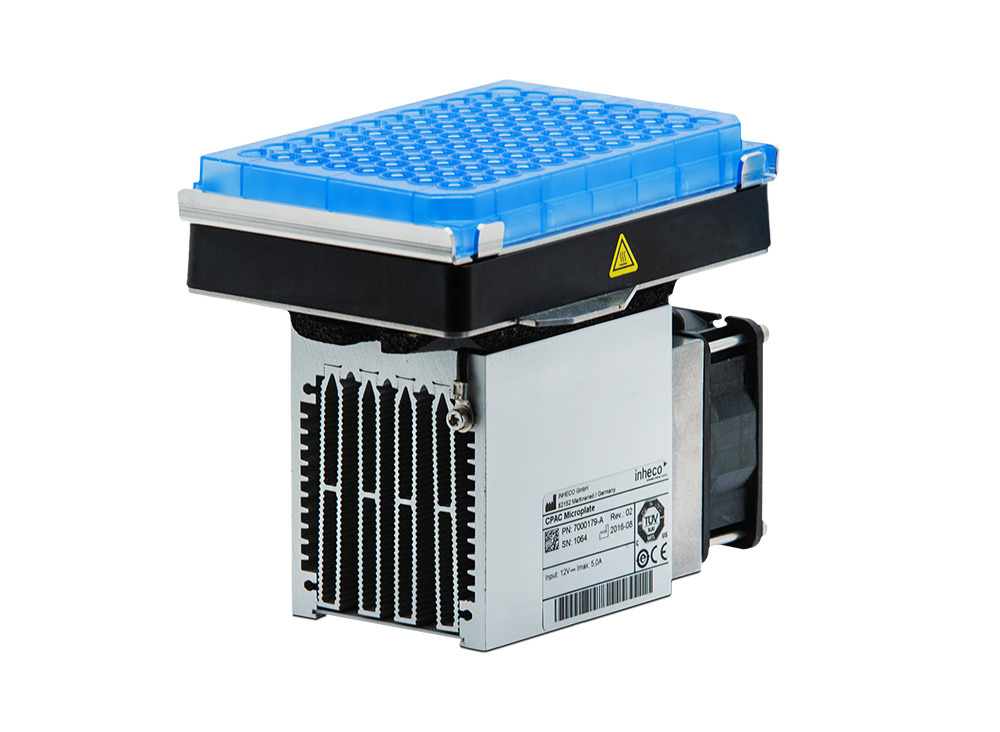

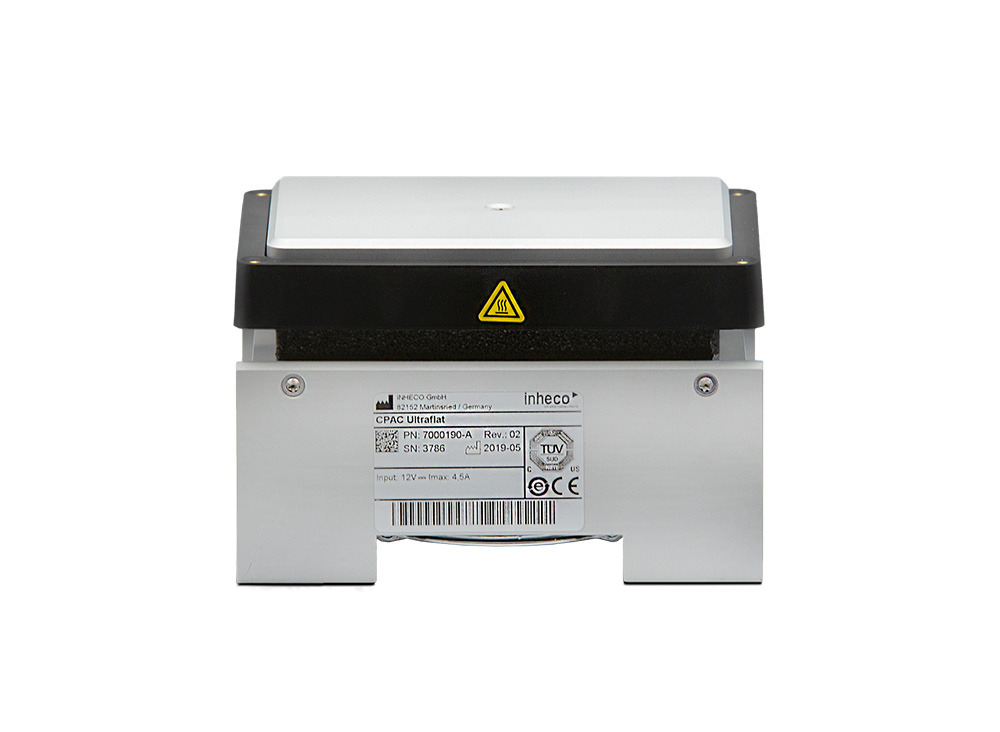

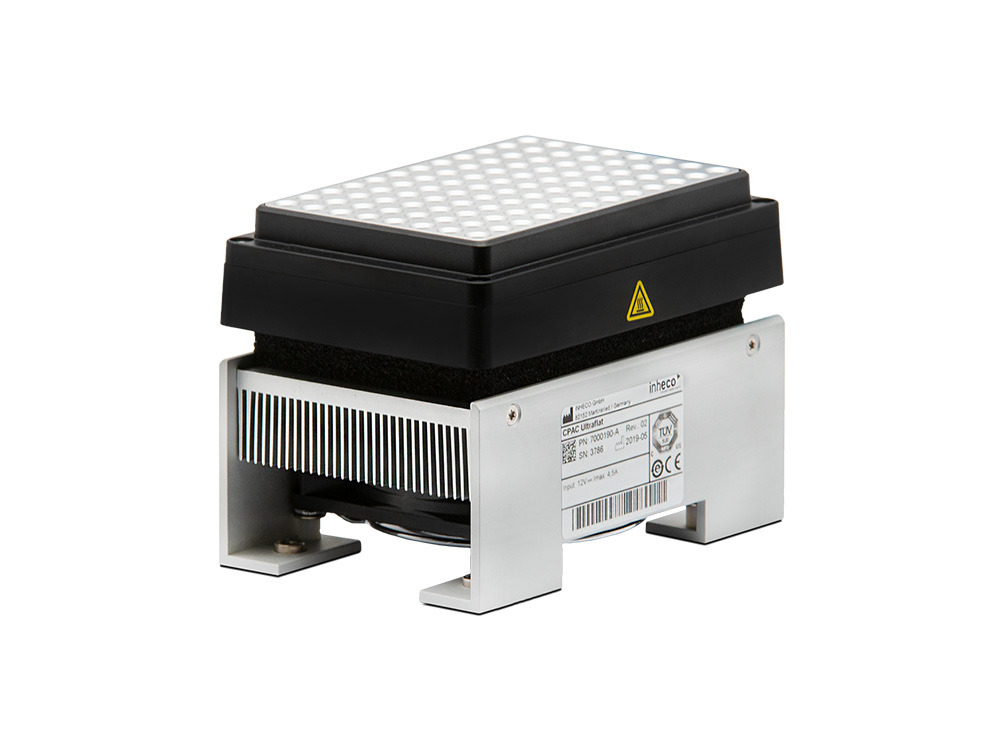

Our CPAC Ultraflat occupies only one ANSI/SLAS plate position on deck. It’s truly compact with a profile of just 80 mm. Our CPAC Microplate has the same small footprint and delivers a profile of only 14 mm with the ventilation installed under deck, providing both excellent low-profile performance and off-deck air movement.

CONSTANT HEAT OR CHANGING TEMPERATURE

Our CPAC devices come in 2 versions:

The Standard versions have one Peltier module and are optimized to maintain your samples at constant temperature up to 70 °C. Temperature range 4 °C to 70 °C, uniformity of 0.5 K, accuracy of 0.3 K.

The HT 2-TEC versions have two Peltier modules for use when alternating temperature and fast temperature changes are required in different incubation phases during a workflow. Temperature range 4 °C to 110 °C, uniformity of 0.5 K, accuracy of 0.3 K.

FLEXIBLE USE

Easy gripper access lets you comfortably use the gripper of your choice. You can use your preferred disposable with the CPAC, including vials and reservoirs – we offer over 200 adapters, manufactured in-house to ensure a perfect fit to the geometry of the disposable item, or can tailor an adapter to fit your needs.

EASY TO INTEGRATE

Control your CPAC with the separate off-deck INHECO Single TEC Control unit (STC) which further minimizes deck space while reducing noise and temperature. Or choose the INHECO Multi TEC Control unit to control up to six devices in parallel when using several INHECO products on your deck. For software integration, an API is available and CPAC models are integrated with all major deck manufacturers.

RELIABLE AND SUPPORTED

Every INHECO device is designed, engineered and made in Germany and undergoes rigorous quality control before delivery. It comes with a global two-year warranty and full customer service including remote support, diagnostic and servicing options that focusses on minimizing operational downtime.
