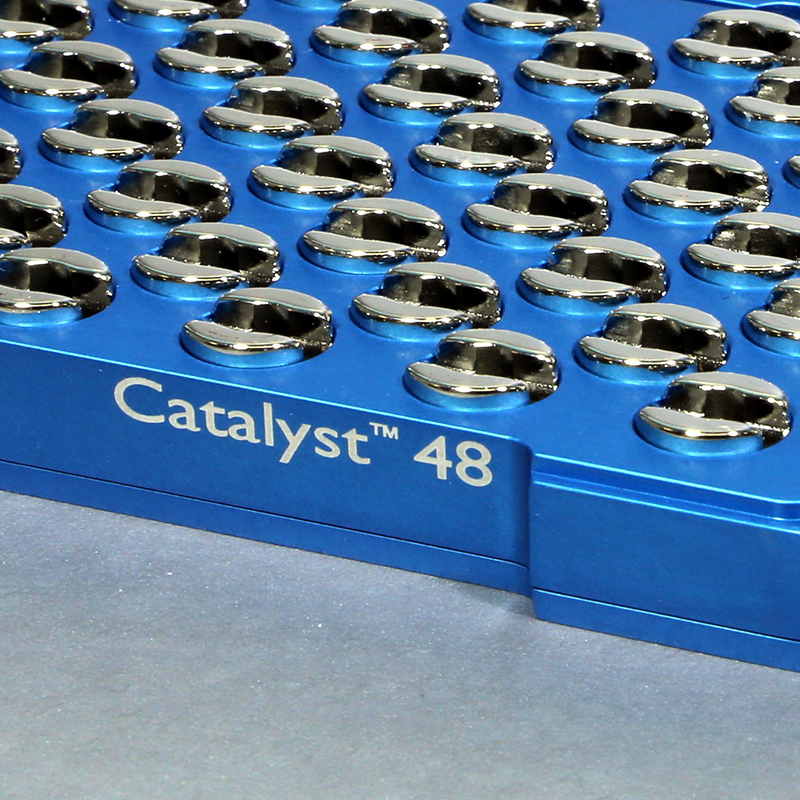

Catalyst? 48

48-well Slotted Ring Magnet Plate 48孔開槽環形磁鐵板 SKU: A000530

Slotted ring magnet plate is configured for manual separations using NEST Scientific 48-well deep well plates for mid-range sample volume applications.

開槽環形磁鐵板配置用于手動分離，使用NEST科學48孔深孔板用于中程樣本量應用。

Proprietary Slotted Ring Magnets – Pipette with Confidence!

The unique architecture of the slotted ring magnet was designed with manual users in mind. It concentrates magnetic beads in opposing arches near the bottom of microplate wells. This allows greater flexibility in removing supernatants, thus minimizing inadvertent bead loss due to variations of individual pipetting techniques which improves overall application consistency.

專有的開槽環形磁鐵-移液器與信心!

開槽環形磁鐵的獨特結構是為手動用戶設計的。它將磁珠集中在靠近微孔底部的相對拱形中。這樣可以更靈活地去除上清液，從而最大限度地減少由于單個移液技術變化而導致的無意的液頭損失，從而提高整體應用的一致性。

Slotted magnet architecture sequesters beads in two opposing arches allowing tip tracking down well walls during manual pipetting.

Eliminate inadvertent bead aspiration

開槽式磁體結構將磁珠隔離在兩個相對的拱形結構中，從而在手動移液時可以跟蹤井壁的尖端。

消除無意的吸頭

Magnets can be rotated to work by row or by column.

Optimized for manual pipetting, yet SBS footprint for robot compatibility.

Innovative design for quality, speed, and ease of use.

磁鐵可以按行或按列旋轉。

針對手動移液進行了優化，但SBS占用尺寸為了機器人兼容性。

創新設計的質量，速度和易用性。

The NEST Scientific 48-well Deep Well Plates

Staggered well design

Each well holds up to 3.5 ml, perfect for protocols that require that little bit of extra volume

48 well format bridges the gap between 96-deep well plates (<2.2 mL) and 24-well plates (<8-10 mL)

Well to well spacing is 18 mm, so multichannel pipettes can be used by skipping every other tip

Bead sequestration is faster in 48-well format compared to 96-well deep well microplates plate because the liquid column is approximately half the height

11 mm well diameter, making visualization of pipette tips easy

Available in sterile and non-sterile versions

Order size is 1 Case (50 plates)

NEST科學48孔深孔板

交錯井設計

每個孔最多可容納3.5毫升，非常適合需要一點點額外體積的協議

48孔格式彌合了96孔板(<2.2 mL)和24孔板(<8-10 mL)之間的差距。

井與井之間的間距為18mm，因此可以通過跳過每個其他尖端來使用多通道移液器

與96孔的深孔微孔板相比，48孔的微孔板的封隔速度更快，因為液柱的高度大約是96孔的一半

11毫米孔直徑，使移液管尖端的可視化容易

可提供無菌和非無菌版本

訂單數量為1箱(50個盤子)

Catalyst? 48 FAQs

Does the Catalyst 48 contain Spring Cushion Technology?

No. Catalyst magnet plates are designed for manual use.  Customer feedback indicated that the additional ‘give’ of the plate upon tips reaching the bottom of the well afforded by Spring Cushion Technology was unnecessary when using manually.

Catalyst?48個常見問題

觸媒48是否包含彈簧緩沖技術?

不。催化劑磁鐵板是為手動使用而設計的。客戶反饋表明，當手動使用時，彈簧緩沖技術提供的在尖端到達井底時額外的“給予”板是不必要的。

Can I use Catalyst plates for automated magnet bead separations?

Absolutely.  While the slotted ring magnet format was designed to address manual user concerns, Catalyst plates have a standard SBS footprint and are fully compatible with most robotic platforms.

我可以使用Catalyst板進行自動磁頭分離嗎?

絕對的。雖然開槽環形磁鐵格式是為了解決手動用戶的問題而設計的，但Catalyst板具有標準的SBS占地面積，并且與大多數機器人平臺完全兼容。

Please note that Catalyst plates do not have integrated Spring Cushion Technology which is beneficial when used on robotic platforms to compensate for Z’ position variability.

請注意，Catalyst板沒有集成彈簧緩沖技術，這在機器人平臺上使用時是有益的，以補償Z '位置的變化。
